Crawl Space Sump Pump Kit(IDS)
https://crawlspacecontractors.com/shop/crawl-space-sump-pump-kit-ids-14311 https://crawlspacecontractors.com/web/image/product.template/14311/image_1920?unique=4fff77cInstaDry® Crawl Space Sump Pump Kit. Some combinations will be made to order, Ships Next Day or Sooner™
This product is Made to Order. If it shows out of stock- it really is not.
InstaDry®
InstaDry® is a professional quality water removal system for homes on a crawl space
Terms and Conditions
30-day money-back guarantee
Shipping:Next Day or Sooner™
InstaDry® Sump Pump Kits

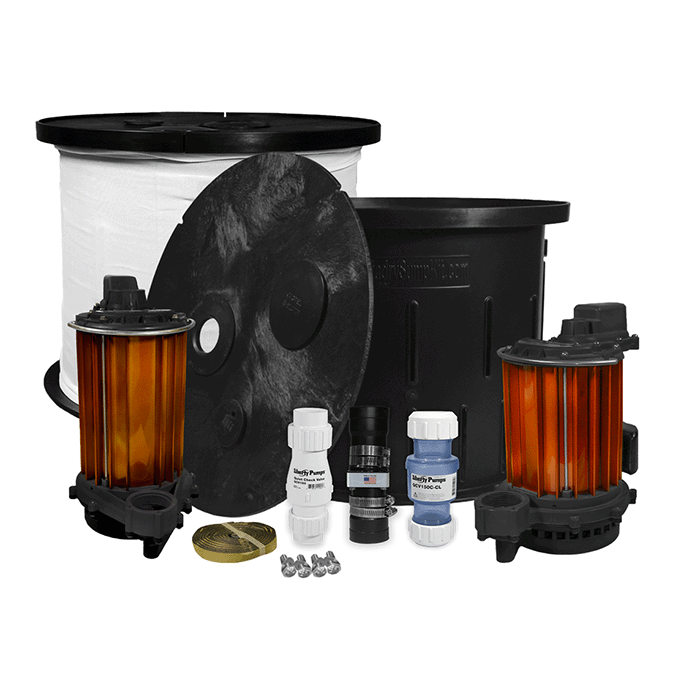

The InstaDry® sump pump kits can be configured differently to meet the pumping needs of your crawl space. This kit is Made in America and can only be purchased through us or one of our distribution partners. The InstaDry® kit includes one pump of your choice, a two piece snap together InstaDry® sump basin, a radon approved lid with rubber caskets & bolts, a PVC discharge pipe and your choice of check valves.
The Pumps
Liberty® sump pumps are offered in the 237 model and 457 model both with an automatic float switch.
237 Model-
- Available in 10' or 25' power cord
- 115v household plug
- Draws 5.2 Amps
- 1/3 HP
- Will discharge up to 3/8" solid
- 45 Gallons Per Min Rating
- Pumps up to 18' high
457 Model-
- Available with 10' power cord
- 115v household plug
- Draws 7.3 Amps
- 1/2 HP
- Will discharge up to 3/8" solid
- 53 Gallons Per Min Rating
- Pumps up to 34'
The Basin
The InstaDry® sump basin is a unique design owned by CrawlSpaceRepair.com, LLC and offers easy entry into any size crawl space opening. We accomplish this with two identical halves that snap together once inside the crawl space. The basin has large water jackets to allow large volumes of water to pass through without allowing water pressure to build up. If there is a situation where water is coming into the crawl space faster than it can be pumped out, the anti float plate on the bottom of the basin will keep the basin in the ground. This basin is installed in the ground with a minimum of 4" of clean rock surrounding the basin. This rock helps filter dirt from settling in the basin. A filter sock is also available for additional filtration in sandy or loose soil environments.
The Lid
This lid comes with a soil gas mitigation port to pipe soil gasses outdoors as well as a discharge port for water and a port for the sump pump's electrical cord. All three ports have rubber gaskets to seal around these pipes and cord. The lid includes a rubber blank to fill the soil gas mitigation port if it is not used on your application.
Check Valves
You have three different check valves to choose from-
- Standard Check valve- All components are Made in the USA of rubber, polyethylene and stainless steel. The rubber makes up the pipe collars and the check flap while the case for the flap is made of polyethylene. The hose clamps are stainless steel.
- Quiet Check Valve Clear or White- This check valve is engineered to stop the slamming noise created when the sump pump turns off AND there is more than 5' of height in the PVC pipe. In most crawl space environments this check valve is not necessary because it does not pump high enough to cause the "slam" from water weight in the pipe. However, it is a heavy duty check valve and many professionals use these for longevity and not for the "quiet" feature
The Rest
Also included in the kit is a 2' PVC discharge pipe with a threaded end to fit the pump.
Select Your Pump | 1/3 HP Liberty Pump 237 w/10' Cord or 1/3 HP Liberty Pump w/25' Cord or 1/3 HP Wayne Pump CDU790 or 1/2 HP Liberty Pump 457 or 1/2 HP Wayne Pump CDU800 |
Select Your Check Valve | InstaDry® Sump Kit STANDARD CHECK VALVE Made In USA or InstaDry® Sump Kit QUIET CHECK VALVE White or InstaDry® Sump Kit QUIET CHECK VALVE Clear |
Select Filtration | Sump Basin w/o Filter Sock or Sump Basin w/Filter Sock |
